Support dual power supply, input voltage: 12~48VDC,nonpolarity,reverse polarity protection
Support -40~75℃ wide operating temperature range
DIN-Rail or Wall Mounting
| Standard & Protocol | IEEE802.3 for 10Base-T IEEE802.3u for 100Base-TX IEEE802.3ab for 1000Base-T IEEE802.3zfor 1000Base-X |
| Interface | Copper port: 10/100/1000Base-T(X).RJ45,Automatic Flow Control. Full/half Duplex Mode. MDI/MDI-X Autotunninf SFP slot:1000Base-SFP |
| LED Indicator | Running Indicator,Port Indicator, Power Supply Indicator |
| Switch Property | Transmission mode: store and forward MAC assress:1K Packet buffer size:1Mbit Backplane bandwidth: 12G Switch time delay: <10μs |
| Power Requirement | 12~48VDC Dual power supply redundancy ,nonpolarity, reverse polarityprotection |
| Power Consumption | No-load: 1.44W@24VDC Full-load: 4.34W@24VDC |
| Environmental Limit | Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95%（no condensation） |
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail mounting Weight: 0.69kg Dimension (W x H x D): 53mm×138mm×110mm |
| Industrial Standard | IEC61000-4-2(ESD),Level 4
Shock: IEC 60068-2-27 Free fail: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Certification | CE, FCC, RoHS |
| Warranty | 5 years |
| Available Models | Gigabit SFP Slot | 100M Copper Port | Power Supply Range | |

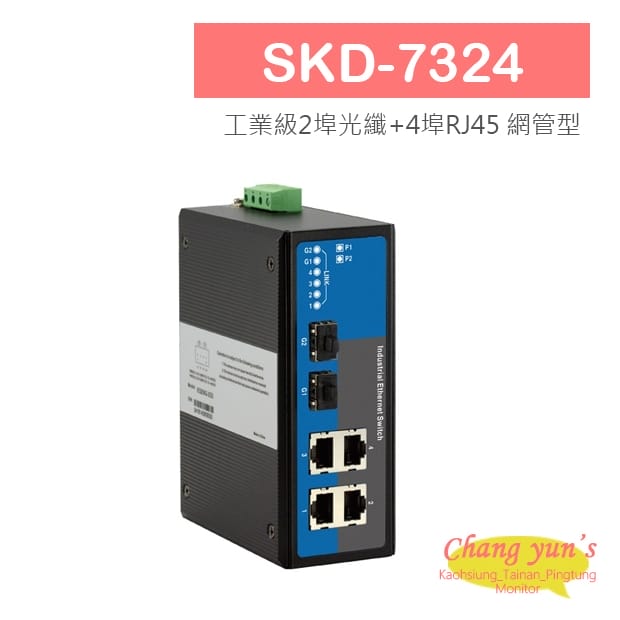

| SKD-7324 | 2 | 4 | 12~48VDC dual power supply |
|
