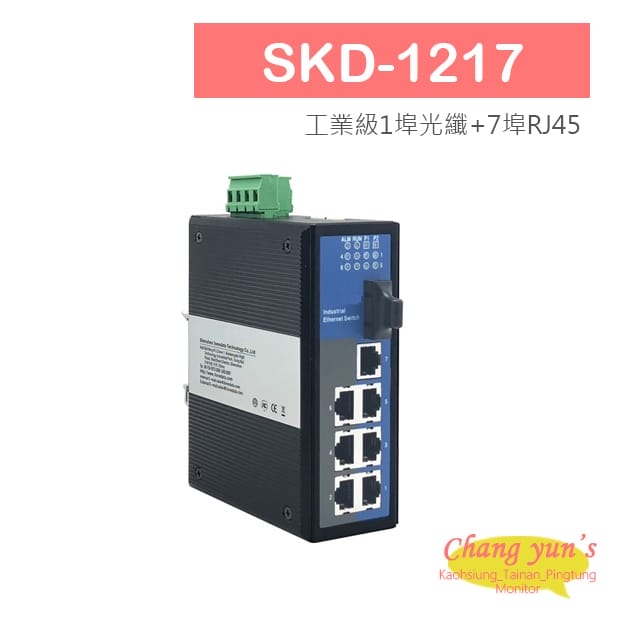

SKD-1217 工業級1埠光纖+7埠RJ45 10/100Mbps 光電轉換器

SKD-1217 工業級1埠光纖+7埠RJ45 10/100Mbps 光電轉換器

SKD-1217 工業級1埠光纖+7埠RJ45 10/100Mbps 光電轉換器
/
詳細介紹
Support 1 100M copper ports and 7 100M Ethernet copper or fiber ports optional
Support relay alarm output
Support dual 12~48VDC power supply input
Support -40~75℃ wide operating temperature range
DIN-Rail Mounting

Standard & Protocol IEEE 802.3 for10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
Interface Copper port: 10/100Base-T(X)RJ45, Automatic Flow Control,
            Full/Half Duplex Mode, MDI/MDI-X Autotunning
Fiber port: 100Base-FX，SC/ST/FC optional
Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm
            output, current carrying capacity 1A@24VDC or
            0.5A@120VAC










LED Indicator Running Indicator, Port Indicator, Power Supply Indicator, Alarm
Indicator
Switch Property Transmission mode: store and forward
MAC address: 2K
Packet buffer size: 1Mbit
Backplane bandwidth: 1.6G
Switch time delay: <10μs
Power Requirement 12~48VDC, 4-pin 7.62mm pitch terminal blocks
Dual power supply redundancy, non-polarity, reverse connection
protection
Power Consumption
Model No-load (@24VDC) Full-load (@24VDC)
SKD-1217 1.75W 3.12W

Environmental Limit Operating temperaturerange: -40~75℃
Storage temperaturerange: -40~85℃
Relative humidity: 5%～95%（no condensation）
Physical Characteristic Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Dimension (W x H x D): 35mm×110mm×95mm
Weight: ≤370g
Industrial Standard IEC61000-4-2(ESD),Level 4
  • Air discharge: ±15kV
  • Contact discharge: ±8kV

IEC61000-4-4(EFT),Level 3
  • Power supply: ±2kV
  • Etherent interface: ±1kV

IEC61000-4-5(Surge),Level 4
  • Power supply: commom mode ±4kV, differential mode ±2kV
  • Etherent interface: ±4kV

Shock: IEC 60068-2-27
Free fail: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification CE, FCC, RoHS

Available Models 100M Fiber Port 100M Copper Port Power Supply Range
SKD-1214 1 4 12~48VDC
