Support 4 optional 100M 1 fiber or copper ports
Support 12~48VDC power supply input
Support -40~75℃ wide operating temperature range
DIN-Rail Mounting
| Environmental Limit | Operating temperaturerange: -40~75℃ Storage temperaturerange: -40~85℃ Relative humidity: 5%～95%（no condensation） |
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 35mm×110mm×95mm Weight: ≤370g |
| Industrial Standard | IEC61000-4-2(ESD),Level 4
IEC61000-4-4(EFT),Level 3
IEC61000-4-5(Surge),Level 4
Shock: IEC 60068-2-27 Free fail: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Certification | CE, FCC, RoHS |
| Available Models | 100M Fiber Port | 100M Copper Port | Power Supply Range |

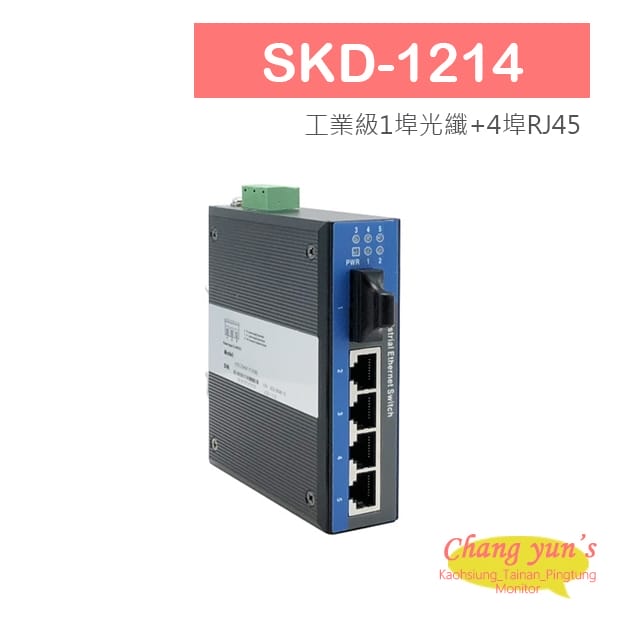

| SKD-1214 | 1 | 4 | 12~48VDC |
